1 Ton Elephant Super 100 with Overload Protection
The right equipment. The right support. Fast.
In Stock / Ships Fast
Expert Support Available
Industrial-Grade Equipment
Freight Support Available
List Price
$999.00
Your Cost
$860.00
| Manufacture Part Number | H100-1 |
|---|---|
| Brand | Elephant |
| Estimated Ship Time | 1-2 Business Days |
Only %1 left
Estimated Ship Time:
1-2 Business Days
The Elephant Super 100 Series with overload protection is the world's most advanced manual chain hoist, designed for heavy duty applications.
Additional features and benefits include:
- 0.5t ~ 10 ton
- Overload protection safety device Grade 105 galvanized load chain, which adheres to the strict German DIN 5684 standard
- Galvanized hand chain
- Double pawls supporting fail-safe brake mechanism
- Load sheave with roller bearing
- The tough reinforced gear case has four ribs and four knock pins, providing accurate gear centering and high mechanical efficiency
- Rolled edge hand wheel cover
- Heavy duty electrostatic powder coating
- Long life friction discs
- Suitable for operation within a -4° ~ 140° temperature range
Technical Specification
All
16
20
32
40
50
60
| Model | Max working load (lbs) | Max working load (mt) | Test Load (mt) | Standard Lift (ft) | Headroom (in) | Hand Effort to Lift Full Working Load (lbf) | Dia. X Pitch (mm) | No. of Falls | Chain Class | Hand Chain Dia. X Pitch (mm) | Net Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| H100-16 | 35,000 | 16 | 20 | 10 | 38.78 | 88 x 1 | 9 x 27 | 6 | +V | 5 x 23.5 | 326 |
| H100-20 | 44,000 | 20 | 25 | 10 | 44.09 | 79 x 2 | 9 x 27 | 8 | +V | 5 x 23.5 | 463 |
| H100-32 | 70,500 | 32 | 40 | 10 | 50.79 | 108 x 2 | 9 x 27 | 10 | +V | 5 x 23.5 | 650 |
| H100-40 | 88,000 | 40 | 50 | 10 | 57.09 | 104 x 2 | 9 x 27 | 14 | +V | 5 x 23.5 | 1025 |
| H100-50 | 110,000 | 50 | 62.5 | 10 | 59.84 | 110 x 2 | 9 x 27 | 16 | +V | 5 x 23.5 | 1213 |
| H100-80 | 176,000 | 60 | 100 | 10 | 126.00 | 104 x 4 | 9 x 27 | 28 | +V | 5 x 23.5 | 5512 |
| Model | Max working load (lbs) | Max working load (mt) | Test Load (mt) | Standard Lift (ft) | Headroom (in) | Hand Effort to Lift Full Working Load (lbf) | Dia. X Pitch (mm) | No. of Falls | Chain Class | Hand Chain Dia. X Pitch (mm) | Net Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| H100-16 | 35,000 | 16 | 20 | 10 | 38.78 | 88 x 1 | 9 x 27 | 6 | +V | 5 x 23.5 | 326 |
| Model | Max working load (lbs) | Max working load (mt) | Test Load (mt) | Standard Lift (ft) | Headroom (in) | Hand Effort to Lift Full Working Load (lbf) | Dia. X Pitch (mm) | No. of Falls | Chain Class | Hand Chain Dia. X Pitch (mm) | Net Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| H100-20 | 44,000 | 20 | 25 | 10 | 44.09 | 79 x 2 | 9 x 27 | 8 | +V | 5 x 23.5 | 463 |
| Model | Max working load (lbs) | Max working load (mt) | Test Load (mt) | Standard Lift (ft) | Headroom (in) | Hand Effort to Lift Full Working Load (lbf) | Dia. X Pitch (mm) | No. of Falls | Chain Class | Hand Chain Dia. X Pitch (mm) | Net Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| H100-32 | 70,500 | 32 | 40 | 10 | 50.79 | 108 x 2 | 9 x 27 | 10 | +V | 5 x 23.5 | 650 |
| Model | Max working load (lbs) | Max working load (mt) | Test Load (mt) | Standard Lift (ft) | Headroom (in) | Hand Effort to Lift Full Working Load (lbf) | Dia. X Pitch (mm) | No. of Falls | Chain Class | Hand Chain Dia. X Pitch (mm) | Net Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| H100-40 | 88,000 | 40 | 50 | 10 | 57.09 | 104 x 2 | 9 x 27 | 14 | +V | 5 x 23.5 | 1025 |
| Model | Max working load (lbs) | Max working load (mt) | Test Load (mt) | Standard Lift (ft) | Headroom (in) | Hand Effort to Lift Full Working Load (lbf) | Dia. X Pitch (mm) | No. of Falls | Chain Class | Hand Chain Dia. X Pitch (mm) | Net Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| H100-50 | 110,000 | 50 | 62.5 | 10 | 59.84 | 110 x 2 | 9 x 27 | 16 | +V | 5 x 23.5 | 1213 |
| Model | Max working load (lbs) | Max working load (mt) | Test Load (mt) | Standard Lift (ft) | Headroom (in) | Hand Effort to Lift Full Working Load (lbf) | Dia. X Pitch (mm) | No. of Falls | Chain Class | Hand Chain Dia. X Pitch (mm) | Net Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| H100-80 | 176,000 | 60 | 100 | 10 | 126.00 | 104 x 4 | 9 x 27 | 28 | +V | 5 x 23.5 | 5512 |
Reviews
Write Your Own Review

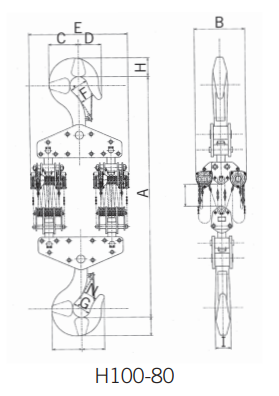

Dimension Guide
