1 Ton Harrington HBTA Bar Tong Adjustable
The right equipment. The right support. Fast.
In Stock / Ships Fast
Expert Support Available
Industrial-Grade Equipment
Freight Support Available
List Price
$2,203.00
Your Cost
$1,982.00
| Manufacture Part Number | HBTA-1 |
|---|---|
| Brand | Harrington |
| Estimated Ship Time | 3-4 Business Days |
Estimated Ship Time:
3-4 Business Days
Features:
- This style of adjustable diameter tong is ideal for lifting round bars, cast or steel pipe of various diameters
- Hold open latch supplied on all 1 ton standard tongs
- Can be supplied with optional replaceable urethane pads for additional load protection
- The load must be balanced during the lift
- Can be used in pairs attached to a lifting/spreader beam to handle longer loads
- Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2
- 100% of ALL tongs are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge
- Made in USA
Options:
- Replaceable urethane pads
- Hold open latch
- Higher capacities available
Technical Specification
| Model # | Capacity (US Tons)* | Dimensions (Inches) | Weight (Lbs.) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Bare Steel Range Min | Bare Steel Range Max | Urethane Pad Range Min | Urethane Pad Range Max | Headroom Max | Headroom Min | Pad Width | Bail Height | Bail Opening Width | Bail Opening Height | |||
| HBTA-1/2-2.5/4 | 1/2 | 2.5 | 4 | 1.75 | 3.25 | 15 | 13 | 2.25 | 0.63 | 1.69 | 1.69 | 10 |
| HBTA-1-4/7 | 1 | 4 | 7 | 3.25 | 6.25 | 24 | 21 | 5 | 0.63 | 1.69 | 1.69 | 25 |
| HBTA-1-7/12 | 1 | 7 | 12 | 6.25 | 11.25 | 38 | 34 | 6 | 0.75 | 2 | 2 | 55 |
| HBTA-1-10/15 | 1 | 10 | 15 | 9.25 | 14.25 | 35 | 25 | 6 | 0.75 | 2.25 | 3.25 | 120 |
| HBTA-1-15/20 | 1 | 15 | 20 | 14.25 | 19.25 | 42 | 31 | 8 | 0.75 | 2.25 | 3.25 | 210 |
Reviews
Write Your Own Review

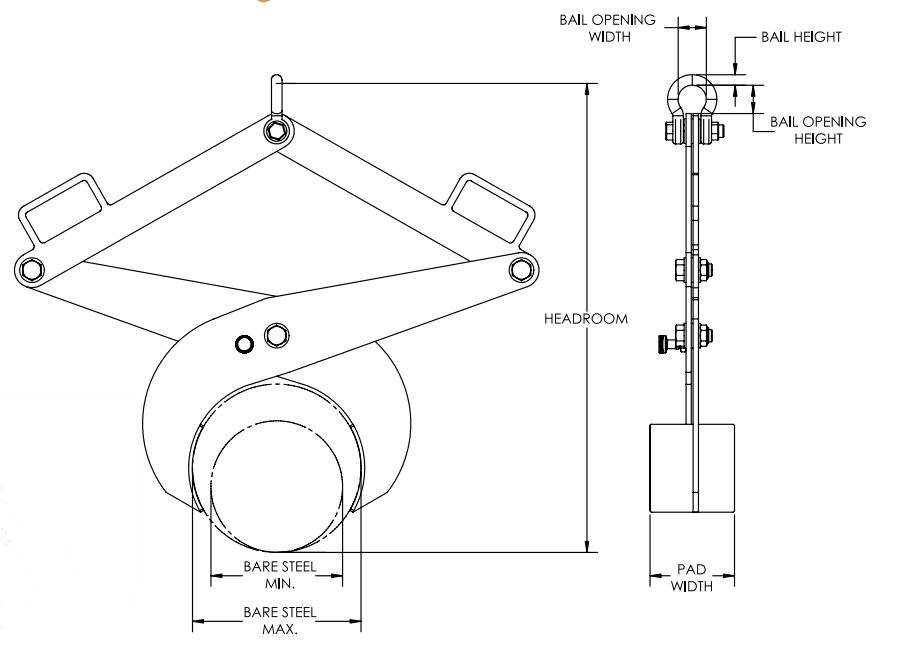

Dimension Guide
