5 Ton Advantage H-Series Floor Mounted Jib Crane
| Manufacture Part Number | H10108 |
|---|---|
| Brand | Advantage |
| Estimated Ship Time | 2-3 Weeks |
Floor Mounted Jib Cranes have a heavy wall structural steel pipe mast and a reinforced large diameter base plate for minimal deflection and continuous alignment. Durable and long lasting overhead floor cranes feature a rolled steel I-beam section with tapered flange for smooth trolley travel. Safety end stops at both ends of boom limit trolley travel. Floor cranes bolt to concrete foundations.
Additional features and benefits include:
- Capacity up to 5 Tons
- Heights & spans to 25'
- I Beam Construction
- Heavy duty gusset & base plate
- Rigid box type head section
- Adjustable Lower roller cage

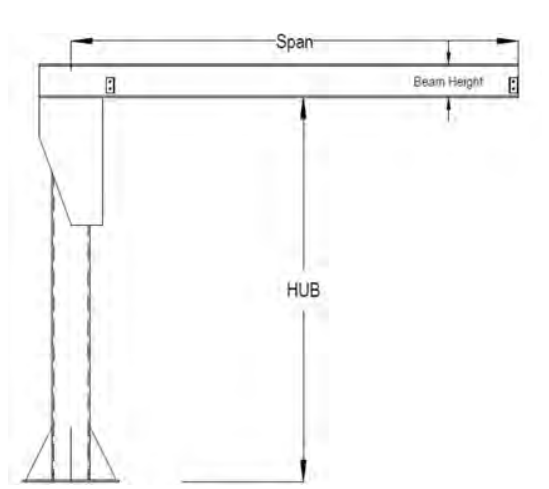

| Capacity (Pounds) | Model | Hub | Span | Beam Height | Flange Width | Base Diameter | Weight lbs. |
|---|---|---|---|---|---|---|---|
| 10,000 | H10108 | 10' | 8' | 21" | 8 ¼" | 60" | 3,905 |
| 10,000 | H101010 | 10' | 10' | 21" | 8 ¼" | 60" | 4,041 |
| 10,000 | H101012 | 10' | 12' | 21" | 8 ¼" | 66" | 4,791 |
| 10,000 | H101014 | 10' | 14' | 24" | 9" | 66" | 5,069 |
| 10,000 | H101016 | 10' | 16' | 24" | 9" | 66" | 5,221 |
| 10,000 | H101018 | 10' | 18' | 24" | 9" | 72" | 6,203 |
| 10,000 | H101020 | 10' | 20' | 24" | 9" | 72" | 6,962 |
| 10,000 | H10128 | 12' | 8' | 21" | 8 ¼" | 60" | 4,113 |
| 10,000 | H101210 | 12' | 10' | 21" | 8 ¼" | 60" | 4,249 |
| 10,000 | H101212 | 12' | 12' | 21" | 8 ¼" | 66" | 5,047 |
| 10,000 | H101214 | 12' | 14' | 24" | 9" | 66" | 5,320 |
| 10,000 | H101216 | 12' | 16' | 24" | 9' | 66" | 5,472 |
| 10,000 | H101218 | 12' | 18' | 24" | 9" | 72" | 6,518 |
| 10,000 | H101220 | 12' | 20' | 24" | 9" | 72" | 7,277 |
| 10,000 | H10148 | 14' | 8' | 21" | 8 ¼" | 60" | 4,313 |
| 10,000 | H101410 | 14' | 10' | 21" | 8 ¼" | 60" | 4,449 |
| 10,000 | H101412 | 14' | 12' | 21" | 8 ¼" | 66" | 5,757 |
| 10,000 | H101414 | 14' | 14' | 24" | 9" | 66" | 6,036 |
| 10,000 | H101416 | 14' | 16' | 24" | 9" | 66" | 6,188 |
| 10,000 | H101418 | 14' | 18' | 24" | 9" | 72" | 6,833 |
| 10,000 | H101420 | 14' | 20' | 24" | 9" | 72" | 7,593 |
| 10,000 | H101610 | 16' | 10' | 21" | 8 ¼" | 60" | 5,078 |
| 10,000 | H101612 | 16' | 12' | 21" | 8 ¼" | 66" | 5,987 |
| 10,000 | H101614 | 16' | 14' | 24" | 9" | 66" | 6,352 |
| 10,000 | H101616* | 16' | 16' | 24" | 9" | 66"* | 6,504 |
| 10,000 | H101618 | 16' | 18' | 24" | 9" | 72" | 7,149 |
| 10,000 | H101620 | 16' | 20' | 24" | 9" | 72" | 7,908 |
| 10,000 | H101810 | 18' | 10' | 21" | 8 ¼" | 60" | 5,325 |
| 10,000 | H101812 | 18' | 12' | 21" | 8 ¼" | 66" | 6,394 |
| 10,000 | H101814 | 18' | 14' | 24" | 9" | 66" | 6,667 |
| 10,000 | H101816* | 18' | 16' | 24" | 9" | 66"* | 6,819 |
| 10,000 | H101818 | 18' | 18' | 24" | 9" | 72" | 7,464 |
| 10,000 | H101820 | 18' | 20' | 24" | 9" | 72" | 8,223 |
| 10,000 | H102010 | 20' | 10' | 21" | 8 ¼" | 60" | 5,576 |
| 10,000 | H102012 | 20' | 12' | 21" | 8 ¼" | 66" | 6,710 |
| 10,000 | H102014 | 20' | 14' | 24" | 9" | 66" | 6,982 |
| 10,000 | H102016* | 20' | 16' | 24" | 9" | 66"* | 7,134 |
| 10,000 | H102018 | 20' | 18' | 24" | 9" | 72" | 7,779 |
| 10,000 | H102020 | 20' | 20' | 24" | 9" | 72" | 8,539 |
| Capacity (Pounds) | Model | Hub | Span | Beam Height | Flange Width | Base Diameter | Weight lbs. |
|---|---|---|---|---|---|---|---|
| 10,000 | H10108 | 10' | 8' | 21" | 8 ¼" | 60" | 3,905 |
| 10,000 | H101010 | 10' | 10' | 21" | 8 ¼" | 60" | 4,041 |
| 10,000 | H101012 | 10' | 12' | 21" | 8 ¼" | 66" | 4,791 |
| 10,000 | H101014 | 10' | 14' | 24" | 9" | 66" | 5,069 |
| 10,000 | H101016 | 10' | 16' | 24" | 9" | 66" | 5,221 |
| 10,000 | H101018 | 10' | 18' | 24" | 9" | 72" | 6,203 |
| 10,000 | H101020 | 10' | 20' | 24" | 9" | 72" | 6,962 |
| Capacity (Pounds) | Model | Hub | Span | Beam Height | Flange Width | Base Diameter | Weight lbs. |
|---|---|---|---|---|---|---|---|
| 10,000 | H10128 | 12' | 8' | 21" | 8 ¼" | 60" | 4,113 |
| 10,000 | H101210 | 12' | 10' | 21" | 8 ¼" | 60" | 4,249 |
| 10,000 | H101212 | 12' | 12' | 21" | 8 ¼" | 66" | 5,047 |
| 10,000 | H101214 | 12' | 14' | 24" | 9" | 66" | 5,320 |
| 10,000 | H101216 | 12' | 16' | 24" | 9' | 66" | 5,472 |
| 10,000 | H101218 | 12' | 18' | 24" | 9" | 72" | 6,518 |
| 10,000 | H101220 | 12' | 20' | 24" | 9" | 72" | 7,277 |
| Capacity (Pounds) | Model | Hub | Span | Beam Height | Flange Width | Base Diameter | Weight lbs. |
|---|---|---|---|---|---|---|---|
| 10,000 | H10148 | 14' | 8' | 21" | 8 ¼" | 60" | 4,313 |
| 10,000 | H101410 | 14' | 10' | 21" | 8 ¼" | 60" | 4,449 |
| 10,000 | H101412 | 14' | 12' | 21" | 8 ¼" | 66" | 5,757 |
| 10,000 | H101414 | 14' | 14' | 24" | 9" | 66" | 6,036 |
| 10,000 | H101416 | 14' | 16' | 24" | 9" | 66" | 6,188 |
| 10,000 | H101418 | 14' | 18' | 24" | 9" | 72" | 6,833 |
| 10,000 | H101420 | 14' | 20' | 24" | 9" | 72" | 7,593 |
| Capacity (Pounds) | Model | Hub | Span | Beam Height | Flange Width | Base Diameter | Weight lbs. |
|---|---|---|---|---|---|---|---|
| 10,000 | H101610 | 16' | 10' | 21" | 8 ¼" | 60" | 5,078 |
| 10,000 | H101612 | 16' | 12' | 21" | 8 ¼" | 66" | 5,987 |
| 10,000 | H101614 | 16' | 14' | 24" | 9" | 66" | 6,352 |
| 10,000 | H101616* | 16' | 16' | 24" | 9" | 66"* | 6,504 |
| 10,000 | H101618 | 16' | 18' | 24" | 9" | 72" | 7,149 |
| 10,000 | H101620 | 16' | 20' | 24" | 9" | 72" | 7,908 |
| Capacity (Pounds) | Model | Hub | Span | Beam Height | Flange Width | Base Diameter | Weight lbs. |
|---|---|---|---|---|---|---|---|
| 10,000 | H101810 | 18' | 10' | 21" | 8 ¼" | 60" | 5,325 |
| 10,000 | H101812 | 18' | 12' | 21" | 8 ¼" | 66" | 6,394 |
| 10,000 | H101814 | 18' | 14' | 24" | 9" | 66" | 6,667 |
| 10,000 | H101816* | 18' | 16' | 24" | 9" | 66"* | 6,819 |
| 10,000 | H101818 | 18' | 18' | 24" | 9" | 72" | 7,464 |
| 10,000 | H101820 | 18' | 20' | 24" | 9" | 72" | 8,223 |
| Capacity (Pounds) | Model | Hub | Span | Beam Height | Flange Width | Base Diameter | Weight lbs. |
|---|---|---|---|---|---|---|---|
| 10,000 | H102010 | 20' | 10' | 21" | 8 ¼" | 60" | 5,576 |
| 10,000 | H102012 | 20' | 12' | 21" | 8 ¼" | 66" | 6,710 |
| 10,000 | H102014 | 20' | 14' | 24" | 9" | 66" | 6,982 |
| 10,000 | H102016* | 20' | 16' | 24" | 9" | 66"* | 7,134 |
| 10,000 | H102018 | 20' | 18' | 24" | 9" | 72" | 7,779 |
| 10,000 | H102020 | 20' | 20' | 24" | 9" | 72" | 8,539 |
Why should I choose a 5 Ton H-Series Floor Mounted Jib Crane instead of a lower-capacity model?
A 5 ton jib crane is ideal for facilities handling heavy machinery, large fabricated components, dies, molds, and industrial equipment. Selecting the proper capacity helps improve safety, reduce equipment strain, and accommodate future production growth.
What foundation specifications should be considered before purchasing th e 5 Ton jib crane?
This crane requires being install ed on a properly engineered concrete foundation capable of supporting crane loads and rotational forces. Foundation requirements vary by span and height configuration, making pre-installation planning essential for long-term performance.
Can the 5 Ton H-Series Floor Mounted Jib Crane handle continuous heavy-duty operation?
Yes. The H-Series features a heavy-wall steel mast, reinforced base plate, and rigid head assembly designed to minimize deflection and maintain alignment during frequent lifting cycles in demanding industrial environments.
What span and height options are available for the 5 Ton H-Series Jib Crane?
The crane is available in multiple height-under-boom and span configurations, allowing facilities to optimize lifting coverage for specific workstations, production cells, maintenance areas, or material handling zones.
Does the 5-ton H-Series jib crane support motorized rotation and powered hoist systems?
Yes. Optional motorized rotation, electric hoists, powered trolleys, collector rings, and festooning systems can be added to improve productivity, reduce manual effort, and support high-volume lifting operations.
